Harmonic Drive

A Harmonic Drive, also known as a strain wave gear, is a precision mechanical gear reducer that achieves very high reduction ratios (roughly 30:1 to 320:1) in a single compact stage by using the controlled elastic deflection of a thin-walled metal cup. ^[1][3] It was invented by American mechanical engineer C. Walton Musser, who filed the foundational patent in 1955 and received U.S. Patent 2,906,143, "Strain Wave Gearing," in 1959. ^[1] The device produces extremely accurate motion with effectively zero backlash, properties that have made it the dominant transmission technology in the rotary joints of industrial and humanoid robotics, surgical robots, satellite mechanisms, and semiconductor production equipment. The three working parts are a wave generator, a flexspline, and a circular spline, and the manufacturer Harmonic Drive Systems Inc. of Tokyo is the world's largest maker by volume. ^[3][6]

Because a bipedal robot typically requires more than a dozen rotary joints capable of holding precise position under significant load, the harmonic drive has become one of the central scaling constraints for the modern humanoid robot industry. McKinsey has identified the supply chain as "one of the biggest constraints on humanoid robots," with bottlenecks "forming around actuators and sensing systems, where performance needs and limited suppliers collide." ^[21] Actuators alone account for an estimated 40 to 60 percent of the bill of materials in a humanoid robot, and the harmonic-drive-based rotary actuator is the most compact and accurate way to deliver the required gear reduction at human limb scale. ^[21]

The name "Harmonic Drive" is a registered trademark of the Harmonic Drive group, a network of three legally connected companies (Harmonic Drive Systems Inc. in Japan, Harmonic Drive SE in Germany, and Harmonic Drive LLC in the United States) that share a single global brand under the majority ownership of the Tokyo-listed parent. ^[4][5] In common engineering usage the term has become a generic synonym for the underlying strain wave gear principle, and competing manufacturers such as Leaderdrive in China and various specialty suppliers in Europe and Korea now produce functionally equivalent reducers. ^[16]

How does a harmonic drive work?

A classical harmonic drive consists of three concentric components that interact through controlled elastic deformation rather than rigid contact. ^[3][10] The mechanism is sometimes described as a "wobbling gear" because its central element changes shape during operation while still meshing accurately with a rigid outer ring.

Wave generator

The wave generator is the input element. It consists of an elliptical steel plug fitted inside a thin-race ball bearing. The bearing's outer race is forced into the elliptical shape of the plug while its inner race rotates with the input shaft. As the input rotates, the major axis of the ellipse sweeps around the circumference, but the components of the bearing themselves continue to roll smoothly. The wave generator is essentially a controlled, rotating elliptical deformation that travels around the inside of the next element. ^[3]

Flexspline

The flexspline is a thin-walled, cup-shaped steel sleeve with external gear teeth machined around the open end. Because the wall is thin (typically a fraction of a millimeter for small units), the open end can be elastically deformed into an oval profile by the wave generator pressed inside it. The closed end of the cup is rigid and serves as the output flange, transferring torque to the load. This combination of a rigid base and an elastically deforming rim is the central insight of strain wave gearing: it allows a single piece of metal to behave like both a rigid coupling and a flexible gear at the same time. ^[3]

Circular spline

The circular spline is a rigid steel ring with internal gear teeth. It is fixed to the housing and does not rotate. Crucially, the circular spline has exactly two more teeth than the flexspline. ^[7] When the wave generator forces the flexspline into an oval shape, the external teeth of the flexspline only engage the internal teeth of the circular spline at the two points along the major axis of the ellipse, while remaining fully disengaged at the two points along the minor axis. According to Harmonic Drive LLC, "the elliptical shape of the Wave Generator causes the teeth of the Flexspline to engage the Circular Spline at two opposite regions across the major axis," and "because the gear teeth are always fully engaged in a region along the major axis, Harmonic Drive gearheads have Zero Backlash." ^[3]

How motion is produced

As the wave generator rotates, the location of tooth engagement travels around the inside of the circular spline. After one full rotation of the wave generator, the flexspline has been engaged at every point on the circular spline once. Because the flexspline has two fewer teeth, it must "slip" backward by exactly two teeth relative to the circular spline during each input revolution. ^[7] The resulting reduction ratio is given by the formula R = (Nf - Nc) / Nf, where Nf is the flexspline tooth count and Nc is the circular spline tooth count. With 200 teeth on the flexspline and 202 on the circular spline, for example, the output rotates at 1/100 the input speed and in the opposite direction.

This mechanism allows reduction ratios of roughly 30:1 to 320:1 in a single stage, far higher than any equivalent planetary or spur gear arrangement of the same diameter. ^[3] Because many teeth are simultaneously engaged on each side of the ellipse, the load is distributed across many contact points, which delivers high torque density, strong shock resistance, and the very low backlash for which the device is famous. Harmonic Drive LLC states that its tooth profile enables up to 30 percent of the total number of teeth to engage at once, which is the basis for the gear's high torque and torsional stiffness. ^[3]

When was the harmonic drive invented?

C. Walton Musser and the original patent

The strain wave gear was invented by Clarence Walton Musser, an American mechanical engineer working as a research adviser at the United Shoe Machinery Corporation. ^[1][2] Musser was a prolific inventor credited with hundreds of inventions across mechanical engineering, physics, chemistry, and biology, including the U.S. Army recoilless rifle and aircraft personnel catapults. ^[2] While exploring "non-rigid body mechanics" in the early 1950s, he conceived the idea that controlled elastic deformation of a metal element could be used as the primary motion-transmitting medium rather than treated as an unwanted error. ^[9]

Musser filed his foundational patent application on March 21, 1955. After several years of examination, U.S. Patent 2,906,143, "Strain Wave Gearing," was granted on September 29, 1959, assigned to the United Shoe Machinery Corporation. ^[1] United Shoe Machinery commercialized the technology under the trademark Harmonic Drive, choosing the name because the elliptical wave generator produces a sinusoidal pattern of strain that travels through the flexspline like a mechanical harmonic. ^[2] References frequently date the conceptual introduction to 1957, the period between Musser's 1955 filing and the 1959 grant. ^[7]

Commercialization in the United States

The technology was first applied in the early 1960s to U.S. military and aerospace programs that needed compact, high-precision actuators. Strain wave gears were used in the steering mechanisms of NASA's Mariner 4 Mars flyby spacecraft in 1964, and they appeared in the wheel drives of the Lunar Roving Vehicle used during the Apollo 15, 16, and 17 missions. ^[7] United Shoe Machinery's harmonic drive division was eventually spun off, and the U.S. operations are today known as Harmonic Drive LLC, headquartered in Beverly, Massachusetts. ^[2]

Expansion into Japan and Germany

In 1970, a Japanese licensee, Harmonic Drive Systems Inc. (HDSI), was established in Tokyo. ^[6] The Japanese operation grew rapidly during the 1980s as the country's industrial robotics industry expanded, and HDSI became the world's largest producer of strain wave gears by volume. A separate German entity, Harmonic Drive AG (now Harmonic Drive SE), was founded in Limburg an der Lahn to serve the European market. ^[4]

In 2017, Harmonic Drive Systems Inc. acquired a majority stake in Harmonic Drive AG, completing the consolidation of the three regional companies under a single Japanese parent and creating a globally unified brand. ^[5] For the fiscal year ending March 2025, the Tokyo-listed parent (Tokyo Stock Exchange ticker 6324) reported net sales of about 55.6 billion Japanese yen, on the order of 0.4 billion U.S. dollars at then-prevailing exchange rates, with the great majority of sales tied to industrial automation, collaborative robots, and the rapidly growing humanoid robotics segment. ^[6]

Suzhou Green Harmonic and the Chinese supply base

The original Musser patents have long since expired, and from the early 2010s onward a domestic Chinese supply base began to form around the technology. Suzhou Leaderdrive, also known as Suzhou Green Harmonic (Leader Harmonious Drive Systems, Chinese: 绿的谐波), traces its origins to 2003, when founder Zuo Yuyu began developing harmonic reducers, but was not formally incorporated until 2011; it listed on the Shanghai Sci-Tech Innovation Board (STAR Market) in 2020. ^[15][25] By 2024 Leaderdrive held an estimated 26 to 60 percent share of the Chinese harmonic reducer market depending on the segment, and it has emerged as the primary precision-gearing supplier to several humanoid-robot programs, including reported orders from Tesla for the Optimus platform. ^[16][18]

Properties and Specifications

Harmonic drives are valued for a particular bundle of mechanical properties that no competing reducer technology can match in a single package. Standard production units routinely deliver positional accuracy of about one arc-minute and repeatability on the order of plus or minus four to ten arc-seconds, with backlash that is for practical purposes immeasurable in a new unit. ^[3] The table below summarizes typical performance ranges for a contemporary precision strain wave gear in the small-to-medium robotics size class.

Scroll sideways for more →

The zero-backlash property is a direct consequence of the geometry: many teeth are simultaneously meshed at any moment along both engagement zones of the ellipse, so any clearance in one tooth pair is statistically averaged out across many others. ^[3] This is fundamentally different from a planetary or spur gear, where a small number of meshed tooth pairs creates an inherent floor on backlash.

The principal disadvantages of the technology are unit cost, sensitivity to overload, and finite flexspline fatigue life. Because the flexspline is repeatedly deformed elastically, it eventually fails by fatigue cracking after enough cycles, and a single severe shock load can rupture the cup outright. ^[8] Lubrication choice and operating temperature have an unusually large effect on lifetime compared with rigid-body gear designs.

How does a harmonic drive compare with other gear technologies?

In modern robotics design, harmonic drives compete primarily with cycloidal RV reducers, planetary gearboxes, planetary roller screws (for linear motion), and direct-drive motors. Each technology occupies a different point in the design space defined by precision, torque density, stiffness, shock resistance, efficiency, and unit cost. ^[8]

Scroll sideways for more →

In industrial articulated robots the choice typically follows a pattern: cycloidal RV reducers (dominated globally by Nabtesco, which holds approximately 60 percent of the precision-reduction-gear market and over 90 percent of the medium-and-heavy-load RV reducer segment) are used in the high-torque base joints (axes 1, 2, and 3), while harmonic drives are used in the smaller, more agile wrist and forearm joints (axes 4, 5, and 6) where backlash and inertia matter more than absolute torque capacity. ^[13] Collaborative robots and surgical robots tend to use harmonic drives across most or all joints because of the demand for compactness and zero backlash.

Major Manufacturers

The global supply base for strain wave gears is unusually concentrated. Fewer than five companies in the world manufacture harmonic-style reducers at scale to the precision required for high-end robotics, and only a handful more produce them in significant volumes for commodity applications. ^[17][21] In fact, industry trackers estimate that the top ten players together held roughly 89 percent of global robotic harmonic-drive-reducer revenue in 2024. ^[29] The table below lists the most important suppliers as of the mid-2020s.

Scroll sideways for more →

What are harmonic drives used for?

Harmonic drives appear wherever a single-stage, compact, high-ratio, zero-backlash reduction is needed. ^[11] The table below summarizes the most economically important application categories.

Scroll sideways for more →

Industrial articulated robots

Nearly every modern six-axis industrial robot uses harmonic drives in at least some of its joints. FANUC's M and R series, ABB's IRB family, Kuka's KR series, Yaskawa Motoman robots, and Universal Robots' UR series all rely on strain wave gears for the wrist and forearm axes, while typically using cycloidal RV reducers for the larger base joints. ^[11][13] Surveys of the industry consistently report that more than 90 percent of robot joint modules on the global market use either harmonic drives or planetary reducers.

Humanoid robots

For humanoid robotics the dependency on strain wave gears is even more pronounced, and the supply chain has become a recognized scaling bottleneck. ^[21] A typical bipedal humanoid uses on the order of 14 to 28 rotary joints in its arms, neck, and waist, plus additional rotary or linear actuators in the legs. Tesla's Optimus, for example, uses 28 actuators in its body, consolidated into seven types: 14 rotary actuators built from a frameless torque motor plus a harmonic drive reducer, and 14 linear actuators built from a frameless torque motor plus a planetary roller screw. ^[22][19] Boston Dynamics Atlas, Figure AI's Figure 02, Agility Robotics Digit, Unitree's G1 and H1, and AGIBOT's A series all share the same general architecture: harmonic drives in the upper-body and small leg rotary joints, with linear roller screw or hydraulic actuators where shock loading is highest. ^[19]

The price of these reducers has been a persistent obstacle to the commercial humanoid roadmap. A single high-precision harmonic drive in robotics-class sizes typically retails for several hundred to several thousand U.S. dollars depending on size, ratio, and certification grade. ^[16] Because actuators make up roughly 40 to 60 percent of a humanoid's bill of materials and a single robot can carry 14 to 28 of these reducers, the gearing alone can dominate the cost of a humanoid robot. ^[21] Tesla and several Chinese competitors have publicly stated targets to drive harmonic drive content cost down by factors of five to ten through volume manufacturing, simplified designs, and partial substitution with planetary reducers in non-critical joints, in pursuit of long-term per-unit prices in the 20,000 to 30,000 USD range. ^[18]

Aerospace and space exploration

Strain wave gears have a long history in spaceflight. The first reported use was in the antenna and steering mechanisms of NASA's Mariner 4 Mars flyby in 1964, and harmonic drives were used in the wheel drives of the Lunar Roving Vehicle on Apollo 15, 16, and 17 and in Skylab solar-array deployment winches. ^[7][12] More recently, NASA's Mars Science Laboratory rover Curiosity (landed 2012) uses harmonic drive units in its robotic arm joints, chosen because the zero-backlash design survives launch shock, the multi-month transit, and the wide Martian temperature swings; the titanium arm has two shoulder joints, one elbow joint, and two wrist joints, each driven by a cold-tolerant custom actuator. ^[12] NASA's follow-on Mars 2020 rover Perseverance uses the same class of harmonic-drive rotary actuators in its robotic arm. ^[20] Vacuum-compatible greases and metallic seals developed for these missions are part of why strain wave gears remain a default choice for high-precision space mechanisms.

Semiconductor and precision equipment

Wafer handling robots, lithography stages, and electron-beam tools all use harmonic drives because of the combination of zero backlash and very high stiffness. ^[11] The cleanroom-compatible greases and metallic seals that have been developed over decades for harmonic drives are part of why the technology has proven hard to displace in semiconductor capital equipment.

Why are harmonic drives a humanoid-robot supply-chain bottleneck?

A single robotics-class harmonic drive reducer typically costs in the range of 500 to 3,000 U.S. dollars, with high-precision space and surgical units costing substantially more and commodity Chinese units now reaching prices well below the lower end of that band. ^[16] The structural reasons for this price level include the small global supply base, the precision tolerances required to achieve sub-arc-second repeatability, the metallurgy and heat treatment of the flexspline, the difficulty of producing the elliptical wave-generator bearing reliably, and the need for specialized lubrication and assembly cleanliness.

The market is widely reported to be supply-constrained. McKinsey describes actuators and sensing systems as the points "where performance needs and limited suppliers collide," and industry analyses note that harmonic drives "remain more exposed because of tighter precision tolerances and a more concentrated supplier base" than alternative gearbox technologies. ^[21] Fewer than five companies in the world produce harmonic drives at scale to humanoid-grade specifications, and even the largest, Harmonic Drive Systems Inc., is widely reported to be unable to fully meet projected demand from the humanoid sector at current capacity. ^[17][21] Chinese suppliers, led by Suzhou Leaderdrive, are expanding aggressively. Leaderdrive's Suzhou plant alone reportedly reached production capacity of more than 500,000 reducers per year by 2024, and Tesla has been publicly identified as one of its largest customers. ^[16][18] Pricing from Chinese suppliers is typically 30 to 40 percent below comparable Japanese product, which is reshaping the global cost curve.

The cost of harmonic drives is the principal reason that humanoid-robot programs are exploring partial substitution with simpler planetary reducers, planetary roller screws (for linear joints), and in a small number of cases direct-drive or quasi-direct-drive architectures with very high-pole-count motors. ^[19] None of these alternatives match the harmonic drive on every axis of performance, but each can replace it in a subset of joints where its specific weaknesses (cost, fatigue life, backlash growth with wear) outweigh its strengths.

Harmonic drives in humanoid robots and dexterous hands

Beyond the industrial and body-joint uses described above, the arrival of mass-market humanoid robots and their multi-fingered hands has turned the strain wave gear into one of the most closely watched components in all of robotics. The four properties that first attracted industrial arm builders (zero backlash, a high single-stage reduction ratio, a compact and lightweight package, and high torque density) are exactly what a human-scale rotary joint needs, which is why the technology is the default choice for the shoulders, elbows, wrists, neck, and waist of nearly every serious humanoid program. ^[21][26]

Rotary versus linear actuators

Humanoid designers face a recurring choice between rotary actuators (a frameless torque motor turning a harmonic drive) and linear actuators (a motor turning a planetary roller screw that pushes a rod). The two are not interchangeable. Rotary harmonic-drive actuators give smooth, zero-backlash motion and pack a high reduction ratio into a short axial length, which suits the many low-to-moderate-torque joints of the arms, wrists, and neck. ^[19][26] Linear roller-screw actuators spread shock across many rolling contacts and tolerate the repeated heavy impacts of walking, so they tend to win at the hip, knee, and ankle. One engineering analysis frames the split bluntly: a harmonic drive at the knee can fatigue and fail under the pounding of tens of thousands of daily steps, while a roller screw survives, but the roller screw needs enormous linear force (over 7,000 newtons to match a few hundred newton-metres of joint torque in one worked example) that only makes sense at the large leg joints. ^[26] Tesla's Optimus is the canonical hybrid, using 14 rotary harmonic-drive actuators in the upper body and 14 linear roller-screw actuators in the legs. ^[22][19]

For these compact humanoid joints the reduction ratio tends to be higher than in a typical industrial arm. Strain wave gears used in humanoid and hand joints are commonly cited in the range of roughly 50:1 to 160:1, and a 100:1 single-stage ratio (a 200-tooth flexspline meshing with a 202-tooth circular spline) is a frequent design point because it lets a small, fast, lightweight motor hold a limb steady against gravity. ^[23][26]

Dexterous hands and micro harmonic reducers

The hardest place to fit a gearbox is inside a dexterous hand. A hand with many degrees of freedom packs a dozen or more actuators into the volume of a human palm and fingers, and the transmission has to shrink accordingly. In practice the dexterous-hand drivetrain is a mix of technologies: coreless (hollow-cup) motors driving tendon-driven cable transmissions, miniature lead screws or ball screws, mechanical linkages, and, at the wrist and the larger finger base joints, micro harmonic reducers. ^[23] The China Humanoid Robotics Tracker describes micro harmonic drives as "the gold standard for precision," offering 30:1 to 160:1 reduction with zero backlash in compact packages, working alongside the encoders, six-axis force/torque sensors, and fingertip tactile sensing arrays that make up the rest of the hand's control stack. ^[23]

Miniaturisation is genuinely hard, and it is a mistake to assume every finger contains a harmonic gear. Many production hands drive their fingers with lead screws, ball screws, or tendons precisely because a sub-20mm strain wave gear is difficult to build. The same tracker reports that finger-scale micro harmonic drives from Chinese makers "remain at the sample verification stage," held back by ultra-thin flexspline metallurgy, heat-treatment distortion, and precision tooth grinding. ^[23] The extreme of the art is the Micro Harmonic Drive gear developed by Micromotion GmbH (a Harmonic Drive SE company) in Mainz, Germany, which the company describes as the world's smallest zero-backlash gear, with an outer diameter down to about 6 mm and single-stage ratios reaching from 160:1 to 1000:1; it was created for medical, optical, semiconductor, and spacecraft mechanisms and shows how far the principle can be pushed toward finger scale. ^[24]

A high-value, supply-constrained component

Because a humanoid carries so many actuators, the gearing is one of the largest single cost lines in the whole machine. Independent decompositions put the actuation layer at roughly half of a humanoid's production cost: Barclays estimates around 50 percent, McKinsey and others put actuators at 40 to 60 percent, and one engineering analysis goes as high as 50 to 70 percent. ^[21][26][28] Within that layer the reducer is the highest-value single item, which is why the harmonic drive is often called the most expensive part of a humanoid robot and why every serious program is trying to drive its cost down. That pressure feeds directly into the humanoid robot market, where component makers and robot builders are racing to hit per-robot price targets that only high-volume manufacturing of cheap, reliable actuators can support. ^[26][28]

China's harmonic reducer supply base

For decades the strain wave gear was effectively a Japanese product, and Harmonic Drive Systems has been the global benchmark since the 1970s. ^[28] The fastest-moving part of the story now is the Chinese supply base. The clear domestic leader is Leaderdrive (Leader Harmonious Drive Systems, Chinese: 绿的谐波, or Green Harmonic), which J.P. Morgan estimated in early 2026 holds 30 to 40 percent of China's harmonic reducer market; its output grew from about 330,000 units in 2022 toward a projected 790,000 in 2025, and the resulting boom briefly made founders Zuo Yuyu and Zuo Jing billionaires as the company's shares climbed with humanoid demand. ^[25] Its customers include Chinese humanoid builders such as AGIBOT and UBTECH, and it has been reported among the precision-gear suppliers to Western programs including Tesla's Optimus. ^[16][25]

Leaderdrive is not alone. Zhejiang Laifual Drive (来福谐波, sometimes rendered Laifu Harmonic) markets a full range of sizes from 8 to 40 and advertises positioning precision of plus or minus 15 arc-seconds and service life beyond 10,000 hours, positioning its reducers as spec-comparable to Japanese product; it also sells a compact "Mini Series" aimed at small joints. ^[27] Ningbo Zhongda Leader Intelligent Transmission (中大力德), founded in 1998, makes precision reducers and integrated joint actuators and has been named in industry coverage among the reducer suppliers to major humanoid programs. ^[28] Zhejiang Shuanghuan Driveline is a further entrant, arriving mainly from the gear and RV-reducer side. Market analysts expect this concentration to intensify: some forecasts cited in industry coverage project that by 2030 a small number of Chinese precision-component makers could supply the majority of the harmonic reducers and roller screws used in humanoid robots worldwide. ^[28]

Vendors are also competing on materials and torque density. Suppliers of PEEK (a high-performance polymer) flexsplines claim mass reductions of roughly 40 to 60 percent versus all-steel units for hand and finger-scale joints, and marketing materials routinely advertise newer micro and "silk hat" designs as offering higher torque density. These figures come from vendors rather than independent testing and should be read as marketing claims until verified. ^[30] Market-size forecasts for humanoid harmonic reducers vary enormously with assumptions about robot volumes: published estimates run from figures in the low hundreds of millions of yuan for today's niche to multi-billion-yuan and multi-billion-dollar markets by 2029 to 2034, and the methodologies differ so widely that any single headline number (and especially the round CAGR figures that circulate on Chinese industry-chain infographics) should be treated with caution. ^[23][29]

Alternatives and Adjacent Technologies

Cycloidal drives

Cycloidal reducers, including the RV reducer family pioneered by Nabtesco and the TwinSpin product line from Spinea in Slovakia, achieve similar reduction ratios using cycloidal lobes that engage rolling pins inside an outer ring. ^[13][14] Compared with harmonic drives, cycloidal drives have higher shock resistance, longer fatigue life, and stiffer torsional behavior, but they are heavier, somewhat less efficient, and have measurable (if low) backlash. ^[8] Industrial robot designers commonly use cycloidal RV reducers for the large base joints and harmonic drives for the smaller wrist joints of the same arm.

Planetary gearboxes

Conventional planetary gear systems are simpler, cheaper, and more efficient than harmonic drives but cannot achieve comparable single-stage reduction ratios or the same near-zero backlash. They appear in the cheaper joints of cost-sensitive humanoid robots, in mobile robot drivetrains, and in any application where positional precision is less important than power throughput and unit cost.

Planetary roller screws

For the linear actuators that drive the load-bearing leg joints of bipedal robots, planetary roller screws have emerged as an important alternative. A roller screw distributes the axial load across multiple threaded rollers, giving it shock resistance and force density that exceed what a harmonic drive of comparable mass can deliver in this kinematic role. ^[19] Tesla Optimus uses 14 planetary roller screws in its linear leg actuators alongside the 14 harmonic-drive rotary actuators elsewhere in the body, and Boston Dynamics Atlas and Figure 02 use planetary roller screws in their hip, knee, and ankle joints. ^[22][19]

Direct-drive and quasi-direct-drive motors

A different class of designs eliminates the reducer entirely, using very large, high-pole-count torque motors driven directly into the joint. Quadruped robots from Boston Dynamics' Spot to MIT Mini Cheetah have used quasi-direct-drive architectures with low-ratio planetary gears for fast, compliant motion. Direct drive offers essentially infinite life and zero backlash but at the cost of much heavier motors, lower peak torque, and higher current draw, making it a poor fit for joints that must hold static loads against gravity for long periods.

Variants and Product Series

Harmonic Drive Systems Inc. and its subsidiaries publish multiple product families that share the underlying strain wave principle but differ in geometry and intended use. ^[3] Notable series include:

Scroll sideways for more →

Beyond the trademarked Harmonic Drive product names, the broader category of "strain wave gear" is now produced under many trade names including Laifual, Leaderdrive LSS / LSG / LCS, Same Sky, and several others, all of which follow the same Musser geometry with proprietary refinements in flexspline metallurgy and tooth profile. ^[16]

See Also

• Robotics
• Humanoid robot
• Humanoid robot market
• Dexterous hand

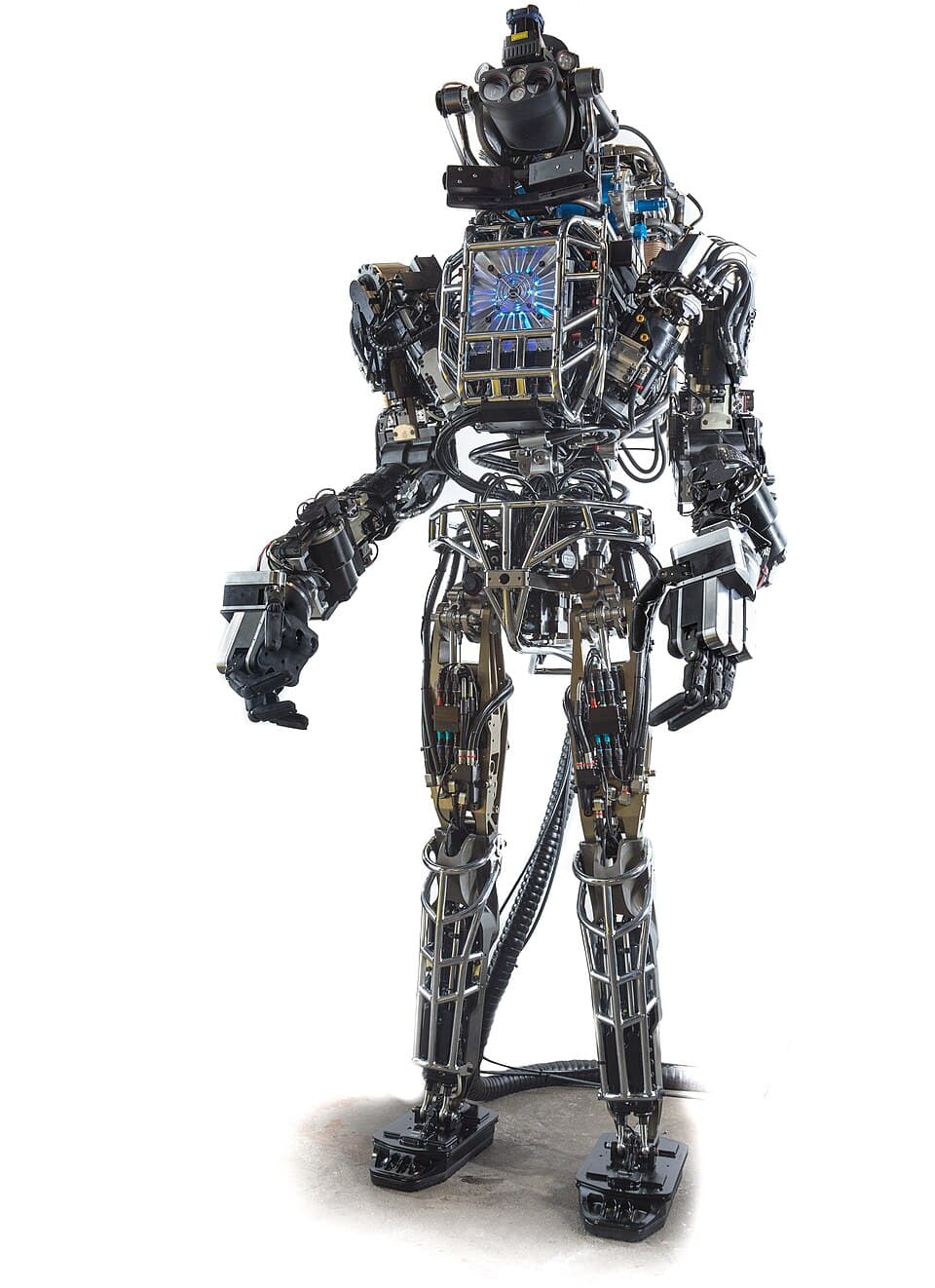

• Atlas robot
